Optima超速離心機轉頭適配離心管
Optima XPN-100/90/80超速離心機Type 90 Ti/Type 70.1 Ti角轉頭
Type 90 Ti、Type 70.1 Ti定角轉頭，使用相同的2.0-13.5mL超速離心管，可滿足樣品的速度區帶離心、DNA和病毒等顆粒沉降、和脂質密度浮選等應用需求。適用于Optima XPN-100/XPN-90/XPN-80系列和Optima XE-100/XE-90系列立式超速離心機。
商品名稱：Type 90 Ti Type 70.1 Ti 角轉頭 Fixed-Angle Titanium Rotor
制 造 商：美國貝克曼庫爾特(Beckman Coulter)公司
品 牌：Beckman
轉頭配套適配器、離心管見:［訂購信息］
詳細描述

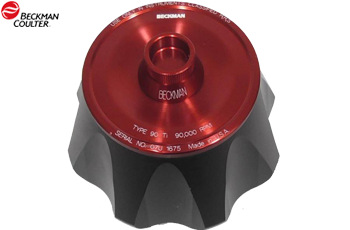

Type 90 Ti定角轉頭，離心管-轉軸成25°夾角，工作容量8×13.5mL，額定轉速90000 rpm。

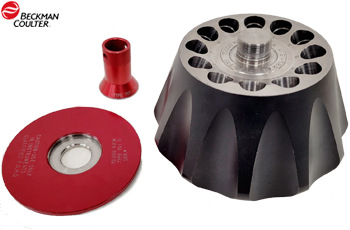

Type 70.1 Ti定角轉頭，離心管-轉軸成24°角，每輪運行可離心12×13.5mL離心管，額定轉速70000 rpm。
兩個轉頭的離心力可滿足樣品的速度區帶離心、DNA和病毒等顆粒沉降、和脂質密度浮選等應用需求。適用于貝克曼Optima XPN-100/XPN-90/XPN-80系列高端立式超速離心機和Optima XE-100/XE-90系列基礎型超速離心機。

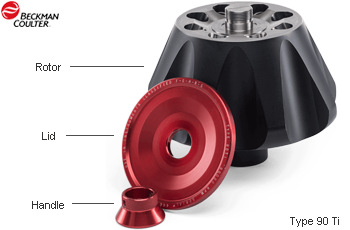

轉子由鈦制成，并涂有黑色聚氨酯漆。鋁制蓋子和手柄經過紅色陽極氧化處理，具有耐腐蝕性。蓋子和手柄中的丁腈橡膠制成的 O 形圈在離心過程中保持轉子內部的大氣壓力。蓋子上的四個小孔為臨時通氣口，防止在泄漏時壓力積聚和擠壓O形圈。

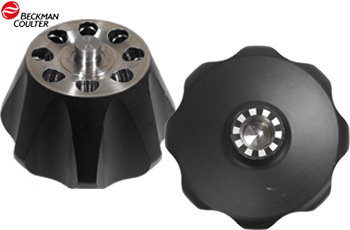

超速離心機配備的光電探測器與轉頭底部的超速盤配合，對轉速實時監測。如檢測到實際轉速超過最大允許速度值，則系統自動關閉轉頭的運行。
1、轉頭使用前的準備
確保轉子中的金屬螺紋清潔并用潤滑劑（Spinkote lubricant 306812）均勻潤滑以減少轉頭蓋啟閉操作中螺紋的磨損。還要確保O形圈均勻地涂有硅真空潤滑脂（silicone vacuum grease 335148）以確保離心孔內的真空密封性能。
將裝滿的容器對稱地裝入轉子，至于轉頭中位置相對的管子，必須用相同密度的液體填充到相同的水平，確保轉頭平衡。
在安裝轉子蓋之前，請確保在管子上放置正確的適配器（如果需要）。蓋上蓋子后，可徒手用轉頭手柄擰緊轉頭蓋。
2、樣品移除與回收
將轉子垂直向上提起并離開驅動軸即可從離心機中取出，通過逆時針擰動轉頭手柄即可拆下轉子蓋。
當使用了轉頭蓋帽適配器時（spacer），使用適配器移除工具和管蓋夾取工具，取出離心孔中墊片。
3、轉頭技術規格
轉頭型號 | TYPE 90 Ti | TYPE 70.1 Ti |
最高速度 | 90000 rpm | 70000 rpm |
最高轉速時溶液額定密度 (Density rating at maximum speed) | 1.2 g/mL | |
最高轉速時相對離心場（Relative Centrifugal Field） | ||
最大離心半徑/最大離心力 | Rmax 76.5 mm/694000×g | Rmax 82.0 mm/450000×g |
平均離心半徑/平均離心力 | Rav 55.4 mm/503000×g | Rav 61.2 mm/336000×g |
最小離心半徑/最小離心力 | Rmin 34.2 mm/310000×g | Rmin 40.5 mm/222000×g |
最大速度下 k 系數(k factor) | 25 | 36 |
額定離心管尺寸 (Nominal tube dimensions) | 16 × 76 mm | |
額定離心容量(Nominal tube capacity) | 8×13.5 mL | 12×13.5 mL |
達到最大速度的近似加速時間（滿載） | 6 min | 6.5 min |
從最大速度(滿載)開始的減速時間 | 4.5 min | 4.0 min |
滿載轉頭重量 | 5 kg | 5.9 kg |
轉頭的材質 | 鈦合金 | |
4、轉頭配套離心管
Type 90 Ti、Type 70.1 Ti轉頭適配的離心管一致（標準配置不含離心管）。
轉頭兼容2.0mL-13.5mL開口管、熱封管和離心瓶。轉頭標準配置不含離心管。
指封管、Quick-Seal管需要管帽墊片/墊片支持，保護離心樣品管安全。薄壁開口管(Thinwall)和超透明開口管(Ultra-Clear)，應盡可能滿地多填充試管，以防止離心過程中試管塌陷。為防止上樣過程樣品溢出，須添加配套管蓋
厚壁管可以帶或不帶蓋子進行離心（至少一半填充）。
Quick-Seal離心管有效密封需用管蓋熱密封器（Cordless Tube Topper）工作套件操作和配套離心管架。
離心管及配套適配器、管蓋詳情參考“訂購信息”。
訂購信息
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
Type 90 Ti角轉頭 | Beckman | 355530 | set | Type 90 Ti Rotor Assembly Standard accessories includes: 3x 839347 O-rings 3x 876089 O-rings 2x 355539 Over-speed Disks 1x 356959 Handle Tool | 詢價 詢價 |
Type 70.1 Ti角轉頭 | Beckman | 342184 | set | Type 70.1 Ti Rotor Assembly Standard accessories includes: 3x 011757 O-rings 3x 858125 O-rings 2x 335585 Over-speed Disks | 詢價 詢價 |
13.5mL熱封管工作套裝 | Beckman | 348179 | set | 13.5mL Quick-Seal Tube Kit includes: 2盒 342413 13.5mL Quick-Seal Polypropylene Tubes 2盒 344322 13.5mL Quick-Seal Ultra-Clear Tubes 12個 342695 Tube Cap Spacers 1個 348123 Tube Rack 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (Cordless Tube Topper Kit required) | 詢價 詢價 |
13.5mL薄壁開口管工作套裝 | Beckman | 348180 | set | 13.5mL Open-Top Tube Kit includes: 2盒 326814 13.5mL Open-Top Polypropylene Tubes 2盒 344085 13.5mL Open-Top Ultra-Clear Tubes 12個 341968 Tube Caps 1個 306812 Spinkote Lubricant 1個 335148 Vacuum Grease (331202 and 305075 Tools required) | 詢價 詢價 |
8.9mL指封管工作套裝 | Beckman | 361660 | set | 8.9mL OptiSeal Polypropylene Tube Kit includes: 4盒 361623 8.9mL OptiSeal Tubes 12個 361670 Tube Cap Spacers 1個 361642 OptiSeal Tube Rack 1個 361668 Tube Extraction Tool 1個 338765 Spacer Removal Tool | 詢價 詢價 |
6.3mL g-Max管工作套裝 | Beckman | 357334 | set | 6.3mL g-MAX Quick-Seal Polypropylene tube Kit includes: 50個 6.3mL g-MAX Quick-Seal Polypropylene tube 345830 12個 管帽適配器 345828 1個 g-Max取管鑷子 878446 1個 取帽工具 338765 | 詢價 詢價 |
4.2mL g-Max管工作套裝 | Beckman | 357332 | pkg/50 | 4.2mL Quick-Seal g-Max Polypropylene tube Kit includes: 50個 4.2mL g-Max管 356562 12個 管帽適配器 345828 1個 g-Max取管鑷子 878446 1個 取帽工具 338765 | 詢價 詢價 |
13.5mL超凈熱封管 | Beckman | 344322 | 50/pkg | 13.5mL Quick-Seal Round-Top Ultra-Clear Tube Nominal Size: 16 x 76mm - 50Pk Applicable Rotor: Type 90 Ti, Type 70.1 Ti Applicable Max. speed 90000rpm Required Red Aluminum Spacer 342695 | 詢價 詢價 |
13.5mL熱封管 | Beckman | 342413 | 50/pkg | 13.5mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 16 x 76mm - 50Pk Applicable Max. speed 90000rpm Required Red Aluminum Spacer 342695 | 詢價 詢價 |
13.5mL無菌熱封管 | Beckman | C14306 | 48/pkg | 13.5mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 16 x 76mm - 48Pk Sterile + Certified Free（無菌無酶） Required Red Aluminum Spacer 342695 | 詢價 詢價 |
Φ16mm管帽墊片 | Beckman | 342695 | 1/pkg | 16mm Diameter Auminum Tube Spacer Applicable Rotors: Type 90 Ti, Type 70Ti, MLA-55 | 詢價 詢價 |
Φ16mm離心管架 | Beckman | 348123 | 1/pkg | Tube Rack (16.0mm Tubes) Applicable tubes : Quick-Seal Ultra-Clear Tubes (344322) Quick-Seal Polypropylene Tubes 344622) | 詢價 詢價 |
13.5mL薄壁開口管 | Beckman | 326814 | 50/pkg | 13.5mL thinwall polypropylene Tube Nominal Size: 16×76 mm Applicable Rotor: Type 90 Ti,Type 70.1 Ti Applicable Max. speed 80000rpm Required Titanium Cap Assembly 341968 | 詢價 詢價 |
13.5mL超凈薄壁開口管 | Beckman | 344085 | 50/pkg | 13.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 16 x 76mm Applicable Max. speed 80000rpm Required Titanium Cap Assembly 341968 | 詢價 詢價 |
13.5mL管蓋組件 | Beckman | 341968 | 1/pkg | 13.4mm Diameter Tube Cap Assembly Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55 適用于326814, 344085 | 詢價 詢價 |
10mL透明厚壁開口管 | Beckman | 355630 | 25/pkg | 10mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 16 x 76mm - 25Pk Applicable Max. speed 50000rpm Required Caps: C39378(替換338907） | 詢價 詢價 |
10mL厚壁開口管 | Beckman | 355640 | 25/pkg | 10mL Open-Top Thickwall Polypropylene Tube Nominal Size: 16 x 76mm - 25Pk Applicable Max. speed 30000rpm Required Caps: C39378(替換338907） | 詢價 詢價 |
10mL管蓋組件 | Beckman | C39378 | 1/pkg | 16mm Diameter Aluminum Tube Cap Assembly C39378(替換貨號338907) | 詢價 詢價 |
10.4mL 透明離心瓶 | Beckman | 355603 | pkg/6 | 10.4mL Polycarbonate Bottle with Cap Assembly Nominal Size: 16×76mm Applicable Max. speed 65000rpm | 詢價 詢價 |
10.4mL 透明離心瓶無蓋 | Beckman | 355651 | 25/pkg | 10.4mL Polycarbonate Bottle without Cap Assembly Required Cap Assembly 355604 | 詢價 詢價 |
10.4mL瓶蓋組件 | Beckman | 355604 | 6/pkg | 16mm Diameter Noryl Cap Assembly Bottle Applicable Ultracentrifuge Rotors: Type 90 Ti | 詢價 詢價 |
10mL熱封管 | Beckman | 344622 | 50/pkg | 10mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16 x 67mm - 50Pk Applicable Max. speed 90000rpm Required Cap Spacer: 344676 | 詢價 詢價 |
Φ16mm管帽墊片 | Beckman | 344676 | 1/pkg | 16mm Diameter Noryl Tube Spacer Applicable Rotor: Type 90 Ti, Type 70.1 Ti, MLA-55 | 詢價 詢價 |
Φ16mm離心管架 | Beckman | 348123 | 1/pkg | Tube Rack (16.0mm Tubes) Applicable : Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322) Quick-Seal Polypropylene Tubes 344622) | 詢價 詢價 |
8.9mL 指封管 | Beckman | 361623 | 56/pkg | 8.9mL OptiSeal Polypropylene Tube Nominal Size: 16 x 60mm - 56Pk Applicable Max. speed 90000rpm Required Cap Spacer: 361670 | 詢價 詢價 |
Φ16mm管帽墊片 | Beckman | 361670 | 2/pkg | 16mm Diameter Noryl Tube Spacer Quantity of Two Product No:361670 Applicable Rotor: Type 70.1 Ti, Type 90Ti, MLA-55. 適用于361623 | 詢價 詢價 |
指封管架 | Beckman | 361642 | 1/pkg | 16 x 60mm Tube Rack | 詢價 詢價 |
6.5mL超凈薄壁開口管 | Beckman | C14296 | 48/pkg | 6.5mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 13 x 64mm - 48Pk Sterile + Certified Free（無菌無酶） Applicable Max. speed 50000rpm Required Adapter: 303313 | 詢價 詢價 |
Φ13mm管套適配器 | Beckman | 303313 | 1/pkg | 13mm Diameter Delrin Tube Adapter | 詢價 詢價 |
6.3mL熱封管 | Beckman | 345830 | pkg/50 | 6.3mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16 x 44mm - 50Pk Applicable Max. speed 90000rpm Required Noryl Floating Spacer 345828 | 詢價 詢價 |
4.2mL熱封管 | Beckman | 356562 | 50/pkg | 4.2mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16 x 38mm - 50Pk Applicable Max. speed 90000rpm Required Floating Spacer 345828 | 詢價 詢價 |
Φ16mm管帽墊片 | Beckman | 345828 | 1/pkg | 16mm Diameter Noryl Floating Tube Spacer Applicable Rotor: Type 90 Ti, Type 70.1 Ti, MLA-55 | 詢價 詢價 |
Φ16mm離心管架 | Beckman | 348123 | 1/pkg | Tube Rack (16.0mm Tubes) Applicable : Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322) Quick-Seal Polypropylene Tubes 344622) | 詢價 詢價 |
4mL厚壁開口管 | Beckman | 355644 | 25/pkg | 4mL Open-Top Thickwall Polypropylene Tube Nominal Size: 13 x 64mm - 25Pk Applicable Max. speed 50000rpm Required Adapter 303313 | 詢價 詢價 |
4mL透明厚壁開口管 | Beckman | 355645 | 25/pkg | 4mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 13 x 64mm - 25Pk Applicable Max. speed 50000rpm Required Adapter 303313 | 詢價 詢價 |
Φ13mm管套適配器 | Beckman | 303313 | 1/pkg | 13mm Diameter Delrin Tube Adapter Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55 | 詢價 詢價 |
2mL超凈薄壁開口管 | Beckman | 344091 | 50/pkg | 2mL Open-Top Thinwall Ultra-Clear Tube Nominal Size: 49 x 8mm - 50Pk Applicable Rotors: Type 90 Ti Type, 70.1 Ti Applicable Max. speed 40000rpm Required Aluminum Cap Assembly 303624 Required Adapter 303376. | 詢價 詢價 |
Φ8mm管套適配器 | Beckman | 303376 | 1/pkg | 8mm Diameter Delrin Tube Adapter Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55. 適用于344091 | 詢價 詢價 |
Φ8mm管帽組件 | Beckman | 303624 | 1/pkg | 8mm Diameter Aluminum Tube Cap Assembly Applicable Ultracentrifuge Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55. 適用于344091 | 詢價 詢價 |
-
