himac超速離心機轉頭適配離心管

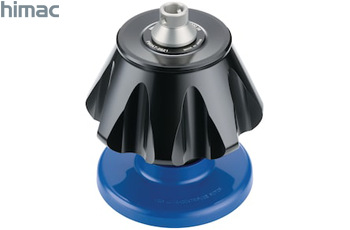

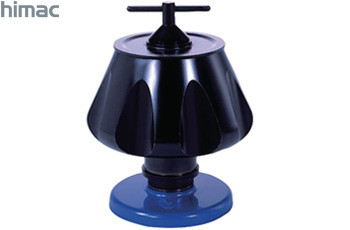

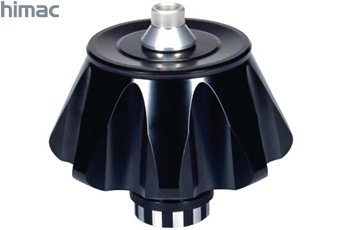

CP100NX/90NX/80NX超速離心機P90AT/P80AT/P70AT2角轉頭
P90AT、P80AT和P70AT2角轉頭，單管最大樣品容量12mL，可使用0.9mL - 12mL的熱封管、開口管，滿足中等體積樣品細胞器、質粒DNA和RNA、細微顆粒沉淀及脂蛋白上浮分離。適用于eppendorf Himac CP100NX、CP90NX和CP80NX系列立式超速離心機。
商品名稱：定角轉頭 Fixed angle rotor
制 造 商：Eppendorf Himac Technologies公司
品 牌：Himac
轉頭配套離心管及適配器報價見：［訂購信息］
詳細描述
P90AT角轉頭最高轉速90000rpm/RCF 700000×g，額定工作容量8×12mL。
P80AT角轉頭最高轉速80000rpm/RCF 615000×g，額定工作容量8×12mL。
P70AT2角轉頭最高轉速70000rpm/RCF 505000×g，額定工作容量12×12mL。
適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。
轉頭主體均為鈦合金材質（Ti alloy），轉軸與離心孔固定夾角為26°。單管最大容量12mL,可用于中等體積樣品細胞器、質粒DNA和RNA、細微顆粒(microscopic particles)沉淀及脂蛋白(lipoprotein)密度上浮分離。
1、轉頭標準組件(Packing list)
轉頭部件 | P90AT | P80AT | P70AT |
Handle | (1x) | (1x) | (1x) |
O-ring for the handle for spare | 5720410148 (2x) | 5720410152 (2x) | 5720410157 (2x) |
Rotor Cover | (1x) | ||
O-ring for the cover for spare | 5720410150 (2x) | 5720410148 (2x) | 5720410153 (2x) |
Handle bar | (1x) | (1x) | (1x) |
Rotor stand | 5720410232 (1x) | 5720410232 (1x) | 5720410232 (1x) |
Lubricant for screw | 5720411230 (1x) | 5720411230 (1x) | 5720411230 (1x) |
Silicone Vacuum grease | 5720850317 (1x) | 5720850317 (1x) | 5720850317 (1x) |
Tool box C | 5720850222 (1x) | 5720850222 (1x) | 5720850222 (1x) |
訂購信息
P90AT、P80AT和P70AT角轉頭的標準配置中不含超速離心管。三個轉頭適用的離心管可通用。
配套離心管包括額定容量12mL（包括12PA Seal Tube、12PA Tube、12PE Tube、12PC Tube、12TI Tube和12SST Tube）、10mL（分為帶蓋的10PC Bottle (B) Assy、10PC Bottle Assy、10PA Bottle Assy和不帶蓋的10PC Thick-Walled Tube和10PA Thick-Walled Tube開口管）、8 mL的8PA Seal Tube、6.5mL（包括6.5PA Tube、6.5PC Tube）、6 mL的6PA Seal Tube、5 mL的5PA Tube、4.7 mL的4.7PC Thick-Walled Tube、4mL的4PA Tube、3mL（包括3PA Tube、3PC Tube）和0.9mL的0.9PC Thick-Walled Tube。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
P90AT角轉頭 | Himac | 5720211102 | set | P90AT Fixed Angle Rotor (w/RLM adaptor) Max. Speed 90000rpm/RCF 700000×g Rotor nominal capacity 8×12mL Allowable density at Max speed of the rotor 1.2g/mL K Factor at Max speed of the rotor 25 Material of rotor Ti alloy Tube size φ1.6×7.6 cm Weight 4.7 kg | 詢價 詢價 |
P80AT角轉頭 | Himac | 5720211103 | set | P80AT Fixed Angle Rotor (w/RLM adaptor) Max. Speed 80000rpm/RCF 615000×g Rotor nominal capacity 8×12mL Allowable density at Max speed of the rotor 1.2g/mL K Factor at Max speed of the rotor 27 Material of rotor Ti alloy Tube size φ1.6×7.6 cm Weight 6.0 kg | 詢價 詢價 |
P70AT角轉頭 | Himac | 5720211104 | set | P70AT Fixed Angle Rotor (w/RLM adaptor) Max. Speed 70000rpm/RCF 505000×g Rotor nominal capacity 12×12mL Allowable density at Max speed of the rotor 1.2g/mL K Factor at Max speed of the rotor 44 Material of rotor Ti alloy Tube size φ1.6×7.6 cm Weight 10.2 kg | 詢價 詢價 |
12PA熱封管 | Himac | 5720411019 | 50pcs/pk | 12PA Seal Tube Tube Dimensions (outer diameter × height): 1.6×7.8cm Net Sample Volume: 13.5 mL Material: PP Maximum Speed: 90000rpm/RCF 700000×g C2 Space Cap (5720411296) required | 詢價 詢價 |
C2蓋帽適配器 | Himac | 5720411296 | 1pc/pk | C2 Space Cap for 12PA Seal Tube | 詢價 詢價 |
12PA熱封管工作套件 | Himac | 5720411101 | 1pc/pk | 12PA Seal Tube Kit (A) including: 5720411019 12PA Seal Tube 2pks (100pcs) 5720411296 C2 Space Cap 12 pcs 5720411232 Tube Setter 1set | 詢價 詢價 |
熱封器STF3 | Himac | 5720310020 | 1pc/pk | Tube Sealer STF3 (200-240V) | 詢價 詢價 詢價 |
超速離心管架 | Himac | 5720410007 | 1pc/pk | Tube Rack (C) | 詢價 詢價 |
12PA薄壁開口管 | Himac | 5720411020 | 50pcs/pk | Himac 12PA Tube Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.2 mL Material: Maximum Speed: 80000rpm/RCF 553000×g | 詢價 詢價 |
12PE薄壁開口管 | Himac | 5720411021 | 50pcs/pk | Himac 12PE Tube Tube Dimensions: cm Net Sample Volume: 10 mL Material: Maximum Speed: 60000rpm/RCF 311000×g | 詢價 詢價 |
S-12AL蓋組件 | Himac | 5720410101 | 1pc/pk | S-12AL Cap Assy for use with 12PA/12PE Tube | 詢價 詢價 |
S-12AL蓋工作套件 | Himac | 5720410104 | 1pc/pk | S-12AL Cap Tool Set for 12PA/12PE Tube The following optional accessories required: 5720410101 S-12AL Cap 8 pcs Hand Press 1 set 5720410245 Tube Holder (C) 1 set 5720410247 Tube Holder (E) 1 set 5720411268 Tube Setter (C) 1 set | 詢價 詢價 |
12PA薄壁開口管 | Himac | 5720411020 | 50pcs/pk | 12PA Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: PP Maximum Speed: 83000rpm/RCF 595000×g | 詢價 詢價 |
12PA開口管工作套件 | Himac | 5720411100 | 1pc/pk | 12PA Tube Kit (A) including: 5720411020 12PA Tube 2pks (100pcs) 5720411211 C-TI Cap 12 pcs 5720411204 NBR O-ring 2pks (20pcs) 5720411265 Tube Vise (C2) 1 set 5720411266 Torque Wrench 1 set 5720411267 Tube Setter (B) 1 set | 詢價 詢價 詢價 |
12PC薄壁開口管 | Himac | 5720411022 | 50pcs/pk | 12PC Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: PC Maximum Speed: 65000rpm/RCF 365000×g | 詢價 詢價 |
12PE薄壁開口管 | Himac | 5720411021 | 50pcs/pk | 12PE Tube Tube Dimensions (outer diameter × height): 1.6×7.5cm Net Sample Volume: 10.5 mL Material: PE Maximum Speed: 65000rpm/RCF 365000×g | 詢價 詢價 |
C-TI蓋組件 | Himac | 5720411211 | 1pc/pk | C-TI Cap for 12PA/PE/PC Tube 57204112331 and 57204112671 required separately | 詢價 詢價 |
C-TI開蓋工具(C2) | Himac | 5720411233 | 1pc/pk | C-TI Cap tool Set (C2) For use with 12PA/PE/PC Tube including: 5720411265 Tube Vise (C2) 1 set 5720411266 Torque Wrench 1 set | 詢價 詢價 詢價 |
蓋密封螺絲刀 | Himac | 5720411267 | 1pc/pk | Tube Setter (B) For use with 5720411233 | 詢價 詢價 |
12TI金屬管 | Himac | 5720411274 | 2pcs/pk | 12TI Tube without cap Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 8.5 mL Material: TI Maximum Speed: 49000rpm/RCF 207000×g | 詢價 詢價 |
12TI金屬管-2 | Himac | 5720411274 | 2pcs/pk | 12TI Tube use with C-TI Cap (5720411211) Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: Maximum Speed: 39000rpm/RCF 131000×g | 詢價 詢價 |
C-TI蓋組件 | Himac | 5720411211 | 1pc/pk | C-TI Cap for 12PC Tube | 詢價 詢價 |
12SS不銹鋼管 | Himac | 5720411023 | 2pcs/pk | 12SS Tube without cap Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 8.5 mL Material: SST Maximum Speed: 40000rpm/RCF 138000×g | 詢價 詢價 |
12SS不銹鋼管-2 | Himac | 5720411023 | 2pcs/pk | 12SS Tube use with C-TI Cap (5720411211) Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: Maximum Speed: 34000rpm/RCF 99900×g | 詢價 詢價 |
C-TI蓋組件 | Himac | 5720411211 | 1pc/pk | C-TI Cap for 12PC Tube | 詢價 詢價 |
10PC離心瓶套件 | Himac | 5720411026 | 6pcs/pk | 10PC bottle (B) assy Tube Dimensions (outer diameter × height): 1.6×8.2cm Net Sample Volume: 8.4 mL Material: PC Maximum Speed: 65000rpm/RCF 365000×g | 詢價 詢價 |
10PC厚壁開口管 | Himac | 5720411024 | 10pcs/pk | 10PC Thick-walled Tube Tube Dimensions (outer diameter × height): 1.6×7.7cm Net Sample Volume: 6.5 mL Material: PC Maximum Speed: 50000rpm/RCF 216000×g | 詢價 詢價 |
10PC離心瓶 | Himac | 5720411027 | 10pcs/pk | 10PC bottle assy Tube Dimensions (outer diameter × height): 1.6×8.2cm Net Sample Volume: 8 mL Material: PC Maximum Speed: 40000rpm/RCF 138000×g | 詢價 詢價 |
10PA離心瓶 | Himac | 5720411028 | 10pcs/pk | 10PA bottle assy Tube Dimensions (outer diameter × height): 1.6×8.1cm Net Sample Volume: 8 mL Material: PP Maximum Speed: 35000rpm/RCF 106000×g | 詢價 詢價 |
10PA厚壁開口管 | Himac | 5720411025 | 10pcs/pk | 10PA Thick-walled Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 6.7 mL Material: PP Maximum Speed: 30000rpm/RCF 77800×g | 詢價 詢價 |
8PA熱封管 | Himac | 5720411017 | 50pcs/pk | 8PA Seal Tube Tube Dimensions (outer diameter × height): 1.6×5.3cm Net Sample Volume: 8.3 mL Material: PP Maximum Speed: 90000rpm/RCF 700000×g | 詢價 詢價 |
C12-8浮動適配器 | Himac | 5720411339 | 1pc/pk | C12-8 Float Spacer Tube Dimensions (outer diameter × height): 1.61×2.87 cm Material: PPO Number of tubes/adapter: 1 | 詢價 |
C2蓋帽適配器 | Himac | 5720411296 | 1pc/pk | C2 Space cap (red) | 詢價 詢價 |
6.5PA薄壁開口管 | Himac | 5720411029 | 50pcs/pk | 6.5PA Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 5.8 mL Material: PP Maximum Speed: 40000rpm/RCF 126000×g | 詢價 詢價 |
6.5A12管套適配器 | Himac | 5720411181 | 10pcs/pk | 6.5A12 Adaptor Assy for 6.5PA, 6.5PC Tubes or 4.7PC Tubes Tube Dimensions (outer diameter × height): 1.61×2.87 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
B-AL蓋組件 | Himac | 5720411201 | 1pc/pk | B-AL Cap for 6.5PA/PC Tube Not applicable to P100AT2 rotor | 詢價 詢價 |
B-AL蓋工具 | Himac | --- | 1pc/pk | B-AL Cap tool Set (B) including: 5720411269 Tube Vise (B) for B-Ti Cap and B-AL Cap 1set 5720411347 Box Wrench 1set | |
B-AL蓋螺絲刀 | Himac | 5720411267 | 1pc/pk | Tube Setter (B) with a hex wrench side used to Tighten or Remove the set screw of the cap | 詢價 詢價 |
6.5PC薄壁開口管 | Himac | 5720411030 | 50pcs/pk | 6.5PC Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 5.8 mL Material: PC Maximum Speed: 40000rpm/RCF 126000×g | 詢價 詢價 |
6.5A12管套適配器 | Himac | 5720411181 | 10pcs/pk | 6.5A12 Adaptor Assy for 6.5PA , 6.5PCor 4.7PC Tubes Tube Dimensions (outer diameter × height): 1.61×2.87 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
B-AL蓋組件 | Himac | 5720411201 | 1pc/pk | B-AL Cap for 6.5PA/PC Tube Not applicable to P100AT2 rotor | 詢價 詢價 |
6PA熱封管 | Himac | 5720411073 | 50pcs/pk | 6PA Seal Tube Tube Dimensions (outer diameter × height): 1.6×4.2cm Net Sample Volume: 6.5 mL Material: PP Maximum Speed: 90000rpm/RCF 700000×g | 詢價 詢價 |
C12-6浮動適配器 | Himac | 5720410251 | 1pc/pk | C12-6 Float Spacer Tube Dimensions (outer diameter × height): 1.61×4.0 cm Material: PPO Number of tubes/adapter: 1 | 詢價 |
C2蓋帽適配器 | Himac | 5720411296 | 1pc/pk | C2 Space cap (red) | 詢價 詢價 |
5PA薄壁開口管 | Himac | 5720411031 | 50pcs/pk | 5PA Tube Tube Dimensions (outer diameter × height): 1.3×5.2cm Net Sample Volume: 5 mL Material: PP Maximum Speed: 40000rpm/RCF 117000×g | 詢價 詢價 |
5A12管套適配器 | Himac | 5720411180 | 10pcs/pk | 5A12 Adaptor for 5PA Tubes or 3PC Tubes Tube Dimensions (outer diameter × height): 1.61×4.0 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
B-AL蓋組件 | Himac | 5720411201 | 1pc/pk | B-AL Cap for 6.5PA/PC Tube Not applicable to P100AT2 rotor | 詢價 詢價 |
4.7PC厚壁開口管 | 5720411032 | 50pcs/pk | 4.7PC Thick-walled Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 3.4 mL Material: PC Maximum Speed: 40000rpm/RCF 126000×g | 詢價 詢價 | |
6.5A12管套適配器 | Himac | 5720411181 | 10pcs/pk | 6.5A12 Adaptor Assy for 6.5PA, 6.5PC or 4.7PC Tubes Tube Dimensions (outer diameter × height): 1.61×2.87 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
4PA薄壁開口管 | Himac | 5720411033 | 50pcs/pk | 4PA Tube Tube Dimensions (outer diameter × height): 1.1×6.0cm Net Sample Volume: 4 mL Material: PP Maximum Speed: 40000rpm/RCF 131000×g | 詢價 詢價 |
4A12管套適配器 | Himac | 5720411179 | 10pcs/pk | 4A12 Adaptor for 4PA Tubes Tube Dimensions (outer diameter × height): 1.61×4.0 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
A3-AL蓋組件 | Himac | 5720411199 | 10pcs/pk | A3-AL Cap Assy for use with 4PA Tube/3PA Tube | 詢價 詢價 |
管固定臺 | Himac | 5720411235 | 1 set | Tube Vise (A2) for A3-AL Cap Assy | 詢價 詢價 |
六角螺絲刀 | Himac | 5720411270 | 1 set | Box Wrench for A3-AL Cap Assy | 詢價 詢價 |
3PA薄壁開口管 | Himac | 5720411034 | 50pcs/pk | 3PA Tube Tube Dimensions (outer diameter × height): 1.1×4.7cm Net Sample Volume: 3 mL Material: PP Maximum Speed: 40000rpm/RCF 120000×g | 詢價 詢價 |
3A12管套適配器 | Himac | 5720411178 | 10pcs/pk | 3A12 Adaptor for 3PA Tubes Tube Dimensions (outer diameter × height): 1.61×4.0 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
A3-AL蓋組件 | Himac | 5720411199 | 10pcs/pk | A3-AL Cap Assy | 詢價 詢價 |
3PC薄壁開口管 | Himac | 5720411012 | 50pcs/pk | 3PC Tube Tube Dimensions (outer diameter × height): 1.3×5.1cm Net Sample Volume: 2.6 mL Material: PC Maximum Speed: 40000rpm/RCF 117000×g | 詢價 詢價 |
5A12管套適配器 | Himac | 5720411180 | 10pcs/pk | 5A12 Adaptor for 5PA Tubes or 3PC Tubes Tube Dimensions (outer diameter × height): 1.61×4.0 cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
0.9PC厚壁開口管 | Himac | 5720411036 | 50pcs/pk | 0.9PC Thick-walled Tube Tube Dimensions (outer diameter × height): 0.8×5.0cm Net Sample Volume: 0.9 mL Material: PC Maximum Speed: 50000rpm/RCF 189000×g | 詢價 詢價 |
2A12管套適配器 | Himac | 5720411177 | 10pcs/pk | 2A12 Adaptor Tube Dimensions (outer diameter × height): 1.61×4.0 cm Material: POM-GF Number of tubes/adapter: 1 | 詢價 詢價 |
-
