himac超速離心機轉頭適配離心管

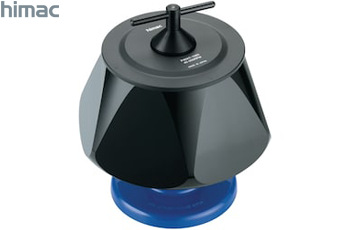

CP100NX/90NX/80NX超速離心機P45AT角轉頭
P45AT角轉頭最高轉速45000 rpm/Max. RCF 235000×g，工作容量6×94mL，適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機，可用于大體積樣品的細胞外囊泡(EVs)、核糖體等細胞器沉淀分離。
商品名稱：P45AT定角轉頭 P45AT Fixed angle rotor
制 造 商：Eppendorf Himac Technologies公司
品 牌：Himac
轉頭配套離心管及適配器報價見：［訂購信息］
詳細描述
P45AT角轉頭為鈦合金材質（Ti alloy），轉軸與離心孔固定夾角24°，最高轉速45000 rpm/Max. RCF 235000×g，額定工作容量6×94mL，兼容3-100mL離心管。適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機，可用于大體積樣品的細胞外囊泡(EVs)、核糖體等細胞器沉淀分離。
轉頭標準組件(Packing list)
5720410163 Rotor O-Ring 2x
5720410153 Handle O-Ring 2x
5720410232 Rotor Stand 1x
5720411230 Lubricate for Screw 1x
5720850317 Silicone Vacuum Grease 1x
5720850222 Tool Box (C) 1x
訂購信息
P45AT角轉頭標準配置中不含超速離心，離心管和和適用的蓋子/適配器需單獨訂購。適用的離心管有94 mL、70 mL、40 mL、33 mL、30 mL、12 mL、10 mL、6.5 mL、5 mL、4.7 mL和3 mL管。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
P45AT角轉頭 | Himac | 5720211109 | set | P45AT Fixed angle rotor with the RLM adapter Max. speed 45000 rpm/Max. RCF 235000×g Allowable density at max speed 1.2 g/mL K Factor at maximum speed 130 Rotor nominal capacity 6×94 mL Material of rotor Ti alloy Tube size φ3.8×10.1 cm Weight 13.2 kg | 詢價 |
94PA Seal Tube Kit | Himac | 5720411163 | 1 set | 94PA Seal Tube KIT for P45AT rotor including: 5720411161 94PA Seal Tube 4pks (100pcs) F2 Space Cap 6x 5720411232 Tube Setter 1x (Tube Sealer STF3, Tube Rack F2 are required separately) | 詢價 詢價 |
熱封器STF3 | Himac | 5720310020 | 1 pc/pk | Tube Sealer STF3 (200-240V) | 詢價 詢價 詢價 |
Tube Rack (F2) | Himac | 5720410009 | 1 pc/pk | Tube rack (F2) for 94PA seal Tubes | 詢價 詢價 |
94PA Seal Tube | Himac | 5720411161 | 25 pcs/pk | 94PA Seal Tube Tube Dimensions (outer diameter × height): 3.8×10.4cm Net Sample Volume: 100 mL Material: PP Maximum Speed: 45000rpm/RCF 235000×g F-TI Space Cap are required separately | 詢價 詢價 |
F-TI Space Cap | Himac | 5720411295 | 1 pc/pk | F-TI Space Cap assy | 詢價 |
94PA Tube Kit | Himac | 5720411162 | 1 set | 94PA Tube Kit, including: 5720411160 94PA Tube 4 pkgs(100pcs) 5720411225 F2-AL Cap 6x 5720850575 O-Ring 1AP29 1 (10pcx) 5720411285 Tube Vise (F) 1x 5720411282 Torque Wrench 1x 5720411283 Socket Adapter 1x 17mm Socket 1x 5720411267 Tube Setter (B) 1x | 詢價 詢價 |
94PA開口離心管 | Himac | 5720411160 | 25 pcs/pk | 94PA Tube without cap for P45AT rotor Tube Dimensions (outer diameter × height): 3.8×10.1cm Net Sample Volume: 84 mL Material: PP Maximum Speed: 45000rpm/RCF 235000×g | 詢價 詢價 |
94PC開口離心管 | Himac | 5720411164 | 25 pcs/pk | 94PC Tube for P45AT rotor Tube Dimensions (outer diameter × height): 3.8×10.1cm Net Sample Volume: 84 mL Material: PC Maximum Speed: 45000rpm/RCF 235000×g | 詢價 詢價 |
94SS不銹鋼管 | Himac | 5720411165 | 2 pcs/pk | 94SS Tube ASSY Tube Dimensions (outer diameter × height): 3.8×10.1cm Net Sample Volume: 84 mL Material: SST Maximum Speed: 20000rpm/RCF 46300×g F2-AL Cap are required | 詢價 詢價 |
F2-AL蓋組件 | Himac | 5720411225 | 1 pc/pk | F2-AL Cap for 94PA/94PC/94SS Tube | 詢價 詢價 |
94SS無蓋不銹鋼管 | Himac | 5720411165 | 2 pcs/pk | 94SS Tube ASSY wo/cap Tube Dimensions (outer diameter × height): 3.8×10.1cm Net Sample Volume: 47.8 mL Material: SST Maximum Speed: 23000rpm/RCF 61300×g | 詢價 詢價 |
70PC帶蓋離心瓶(C) | Himac | 5720411150 | 6 pcs/pk | 70PC bottle (C) assy Tube Dimensions (outer diameter × height): 3.8×10.6cm Net Sample Volume: 65 mL Material: PC Maximum Speed: 45000rpm/RCF 235000×g | 詢價 詢價 |
70PC無蓋離心瓶 (B) | Himac | 5720411151 | 6 pcs/pk | 70PC Bottle without cap Tube Dimensions (outer diameter × height): 3.8×10.6cm Net Sample Volume: 65 mL Material: PC Maximum Speed: 30000rpm/RCF 104000×g | 詢價 詢價 |
70PA帶蓋離心瓶(C) | Himac | 5720411153 | 6 pcs/pk | 70PA Bottle(C) (70PA Bottle with cap) Tube Dimensions (outer diameter × height): 3.8×10.6cm Net Sample Volume: 63.5 mL Material: PP Maximum Speed: 36000rpm/RCF 150000×g | 詢價 詢價 |
40PA薄壁開口管 | Himac | 5720411139 | 50 pcs/pk | 40PA Tube for rotors P28S/P45AT/P50AT2/P70AT Tube Dimensions (outer diameter × height): 2.6×9.0cm Net Sample Volume: 35.7 mL Material: PP Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
40PE薄壁開口管 | Himac | 5720411146 | 50 pcs/pk | 40PE Tube without cap Tube Dimensions (outer diameter × height): 2.6×8.9cm Net Sample Volume: 35.7 mL Material: PE Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
40PET薄壁開口管 | Himac | 5720411148 | 50 pcs/pk | 40PET Tube Tube Dimensions (outer diameter × height): 2.6×9.0cm Net Sample Volume: 37 mL Material: PET Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
40A94管套適配器 | Himac | 5720411189 | 6 pcs/pk | 40A94 Adaptor applicable to P45A rotor Use with for 30mL, 33mL, 40mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
E3-AL管蓋套件 | Himac | 5720411212 | 1 pc/pk | E3-AL Cap Assy Use with 40PA Tube/40PE Tube/40PET Tube | 詢價 詢價 |
40PE薄壁開口管 | Himac | 5720411146 | 50 pcs/pk | 40PE Tube without cap Tube Dimensions (outer diameter × height): 2.6×8.9cm Net Sample Volume: 35.7 mL Material: PE Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
40A94管套適配器 | Himac | 5720411189 | 6 pcs/pk | 40A94 Adaptor applicable to P45A rotor Use with for 30mL, 33mL, 40mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
E4-AL管蓋套件 | Himac | 5720411223 | 1 pc/pk | E4-AL Cap for 40PE Tube | 詢價 詢價 |
33PC 厚壁開口管 | Himac | 5720411137 | 10 pcs/pk | 33PC Thick-walled Tube ASSY Tube Dimensions (outer diameter × height): 2.6×8.9cm Net Sample Volume: 19.9 mL Material: PC Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
33PA 厚壁開口管 | Himac | 5720411138 | 10 pcs/pk | 33PA Thick-walled Tube Tube Dimensions (outer diameter × height): 2.6×8.8cm Net Sample Volume: 19.9 mL Material: PP Maximum Speed: 25000rpm/RCF 67800×g | 詢價 詢價 |
40A94管套適配器 | Himac | 5720411189 | 6 pcs/pk | 40A94 Adaptor applicable to P45A rotor Use with for 30mL, 33mL, 40mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
30PA離心瓶 | Himac | 5720411123 | 10 pcs/pk | 30PA Bottle Tube Dimensions (outer diameter × height): 2.6×9.7cm Net Sample Volume: 26 mL Material: PP Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
30PC無蓋離心瓶 (B3) | Himac | 5720411127 | 6 pcs/pk | 30PC Bottle (B3) ASSY Tube Dimensions (outer diameter × height): 2.6×9.7cm Net Sample Volume: 26 mL Material: PC Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
30PC帶蓋離心瓶 (C3) | Himac | 5720411126 | 6 pcs/pk | 30PC Bottle (C3) ASSY Tube Dimensions (outer diameter × height): 2.6×9.7cm Net Sample Volume: 26 mL Material: PC Maximum Speed: 30000rpm/RCF 97700×g | 詢價 詢價 |
40A94管套適配器 | Himac | 5720411189 | 6 pcs/pk | 40A94 Adaptor applicable to P45A rotor Use with for 30mL, 33mL, 40mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
12SS不銹鋼管 | Himac | 5720411023 | 2 pcs/pk | 12SST Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 8.3 mL Material: SST Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12SS不銹鋼管 | Himac | 5720411023 | 2 pcs/pk | 12SST Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: SST Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12A94管套適配器 | Himac | 5720411188 | 6 pcs/pk | 12A94 Adaptor Assy applicable to P45AT rotor for 12mL or 10mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
C-AL管蓋套件 | Himac | 5720411208 | 1 pc/pk | C-AL Cap Assy, a part of 12PA Tube kit (B) Use with 12PA/12PC/12PE/12SS Tube Tool Set (C) and Tube Setter (B) are required | 詢價 詢價 |
12SS不銹鋼管 | Himac | 5720411023 | 2 pcs/pk | 12SST Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5mL Material: SST Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12A94管套適配器 | Himac | 5720411188 | 6 pcs/pk | 12A94 Adaptor Assy applicable to P45AT rotor for 12mL or 10mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
C-SS管蓋套件 | Himac | 5720411210 | 1 pc/pk | C-SS Cap for 12SS Tube Tool Set (C) and Tube Setter (B) are required | 詢價 詢價 |
12PA薄壁開口管 | Himac | 5720411020 | 50 pcs/pk | 12PA Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: PP Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12PE薄壁開口管 | Himac | 5720411021 | 50 pcs/pk | 12PE Tube Tub Dimensions (outer diameter × height): 1.6×7.5cm Net Sample Volume: 10.5 mL Material: PE Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12PC薄壁開口管 | Himac | 5720411022 | 50 pcs/pk | 12PC Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 10.5 mL Material: PC Maximum Speed: 30000rpm/RCF 94000×g | 詢價 詢價 |
12A94管套適配器 | Himac | 5720411188 | 6 pcs/pk | 12A94 Adaptor Assy applicable to P45AT rotor for 12mL or 10mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
C-AL管蓋套件 | Himac | 5720411208 | 1 pc/pk | C-AL Cap Assy, a part of 12PA Tube kit (B) Use with 12PA/12PC/12PE/12SS Tube Tool Set C and Tube Setter B are required | 詢價 詢價 |
12PET薄壁開口管 | Himac | 5720411106 | 50 pcs/pk | 12PET Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 11.4 mL Material: PET Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12A94管套適配器 | Himac | 5720411188 | 6 pcs/pk | 12A94 Adaptor Assy applicable to P45AT rotor for 12mL or 10mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
C4-AL管蓋套件 | Himac | 5720411209 | 1 pc/pk | C4-AL Cap | 詢價 詢價 |
10PA 厚壁開口管 | Himac | 5720411025 | 10 pcs/pk | 10PA thick-walled Tube Tube Dimensions (outer diameter × height): 1.6×7.6cm Net Sample Volume: 6.5 mL Material: PP Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
10PA離心瓶 | Himac | 5720411028 | 10 pcs/pk | 10PA bottle assy Tube Dimensions (outer diameter × height): 1.6×8.1cm Net Sample Volume: 8 mL Material: PP Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
10PC 厚壁開口管 | Himac | 5720411024 | 10 pcs/pk | 10PC thick-walled Tube Tube Dimensions (outer diameter × height): 1.6×7.7cm Net Sample Volume: 6.3 mL Material: PC Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
10PC離心瓶 | Himac | 5720411027 | 10 pcs/pk | 10PC bottle assy Tube Dimensions (outer diameter × height): 1.6×8.2cm Net Sample Volume: 8 mL Material: PC Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
10PC離心瓶 (B) | Himac | 5720411026 | 6 pcs/pk | 10PC bottle (B) assy Tube Dimensions (outer diameter × height): 1.6×8.2cm Net Sample Volume: 8.4 mL Material: PC Maximum Speed: 30000rpm/RCF 94400×g | 詢價 詢價 |
12A94管套適配器 | Himac | 5720411188 | 6 pcs/pk | 12A94 Adaptor Assy applicable to P45AT rotor for 12mL or 10mL Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
6.5PA薄壁開口管 | Himac | 5720411029 | 50 pcs/pk | 65PA Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 5.8 mL Material: PP Maximum Speed: 30000rpm/RCF 88600×g | 詢價 詢價 |
6.5PC薄壁開口管 | Himac | 5720411030 | 50 pcs/pk | 65 PC Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 5.8 mL Material: PC Maximum Speed: 30000rpm/RCF 88600×g | 詢價 詢價 |
6.5A94管套適配器 | Himac | 5720411187 | 6 pcs/pk | 6.5A94 Adaptor Assy applicable to P45AT rotor Use with 6.5PA/6.5PC/6.5PET Tubes or 4.7PC Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
B-AL管蓋套件 | Himac | 5720411201 | 1 pc/pk | B-AL Cap Assy Use with: 6.5PA Tube, 6.5PC Tube, and 5PA Tube Tool Set B and Tube Setter B are required | 詢價 詢價 |
6.5PET薄壁開口管 | Himac | 5720411080 | 50 pcs/pk | 6.5PET Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 6.2 mL Material: PET Maximum Speed: 30000rpm/RCF 88600×g | 詢價 詢價 |
6.5A94管套適配器 | Himac | 5720411187 | 6 pcs/pk | 6.5A94 Adaptor Assy applicable to P45AT rotor Use with 6.5PA/6.5PC/6.5PET Tubes or 4.7PC Tubes Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
B2-AL管蓋套件 | Himac | 5720411207 | 1 pc/pk | B2-AL Cap Use with 6.5PET Tube | 詢價 詢價 |
5PA薄壁開口管 | Himac | 5720411031 | 50 pcs/pk | 5PA Tube Tube Dimensions (outer diameter × height): 1.3×5.2cm Net Sample Volume: 5 mL Material: PP Maximum Speed: 30000rpm/RCF 83700×g | 詢價 詢價 |
5A94管套適配器 | Himac | 5720411186 | 6 pcs/pk | 5A94 Adaptor applicable to P45AT rotor Tube Dimensions: cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
B-AL管蓋套件 | Himac | 5720411201 | 1 pc/pk | B-AL Cap Assy Use with: 6.5PA Tube, 6.5PC Tube, and 5PA Tube Tool Set B and Tube Setter B are required | 詢價 詢價 |
4.7PC 厚壁開口管 | Himac | 5720411032 | 50 pcs/pk | 47PC thick-walled Tube Tube Dimensions (outer diameter × height): 1.3×6.4cm Net Sample Volume: 3.4 mL Material: PC Maximum Speed: 30000rpm/RCF 88600×g | 詢價 詢價 |
6.5A94管套適配器 | Himac | 5720411187 | 6 pcs/pk | 6.5A94 Adaptor ASSY applicable to P45AT rotor Use with 6.5PA, 6.5PC, 6.5PET Tubes or 4.7PC Tube Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
3PC薄壁開口管 | Himac | 5720411012 | 50 pcs/pk | 3PC Tube Tube Dimensions (outer diameter × height): 1.3×5.1cm Net Sample Volume: 2.5 mL Material: PC Maximum Speed: 30000rpm/RCF 83700×g | 詢價 詢價 |
5A94管套適配器 | Himac | 5720411186 | 6 pcs/pk | 5A94 Adaptor applicable to P45AT rotor Tube Dimensions: cm Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
-
